__The V-Curves of a Synchronous Motor __

The magnitude of excitation current affects both the margin of stability and the reactive current of a synchronous motor. Let us analyse this relation by referring to the phasor/vector diagram of a phase of a synchronous motor connected to a large power system

(*V* = const), as shown in Fig 16. Given a constant retarding torque at the motor shaft, *T*_{ret} = *T*_{em} its power *P* = *T*_{em}ɷ_{rot} will be likewise constant, so, as follows from Eq. (15.18) and Eq. (15.19), the products

*E*_{0} sin θ = ɷΨ0 sin θ = const

and

*I* cos φ = *I* act = const

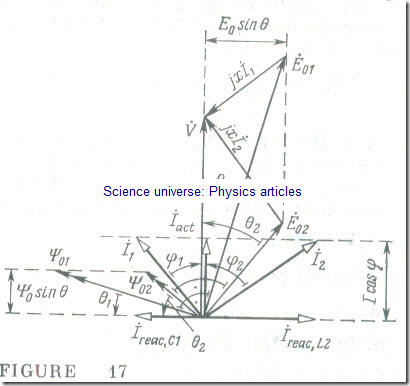

are always the same and independent of the excitation current. A combined phasor/vector diagram of a phase of a synchronous motor for *T*_{ret} = const and for several values of the excitation (field) current *I*_{f} = VAr is shown in Fig 17. As *I*_{f} (excitation flux. linkage Ψ_{0}) is reduced, the angle θ increases until the synchronous motor loses stability.

As follows from the phasor/vector diagram, the magnitude and effect of the stator current of a synchronous motor

*İ = İ*_{act} + *İ*_{reac}

depend on the excitation (field) current *I*_{f} When the field current is less than some limiting value, *I*_{f} < *I*_{f}._{Iim} (*P*), the stator current I has an inductive reactive component *I*_{reac}._{L} (φ > 0). When the field current exceeds some limiting value, *I*_{f}> *I*_{f}._{Iim }, the stator current has a capacitive reactive component *I*_{reac}. _{c} (φ < 0). Hence, in the case of underexcitation the reactive power of a synchronous motor is inductive in its effect

Q* _{L}* = 3

*VI*

_{reac},

_{L}In the case of overexcitation, it is capacitive in its effect

Q_{C} = 3*VI*_{reae}. _{C}

Accordingly, each phase of a synchronous motor connected to a large power system may be represented by an equivalent circuit consisting of a parallel combination of an equivalent resistive element whose resistance depends on the load torque, *r* = *V*/*I*_{act} = *F* (*T*_{1oad}), and an equivalent inductive (capacitive) element whose inductance (capacitance) is a function of the load torque and the field current:

*L* = *V*/ɷ*I*_{reac}, * _{L}* =

*F*(

*I*

_{f},

*T*

_{load})

or

*C* = *I*_{reac}. _{C}/ɷ*V* = *F* (*I*_{f}, *T*_{load})

If the load torque of the motor is zero, *T*_{load} = 0, then the equivalent circuit for a phase of a synchronous motor connected to a large power system will contain no resistive element, and the magnitude of the inductive (capacitive) element will be solely dependent on the field current.

The plots relating the stator current or a synchronous motor connected to a large power system (*V* = const) to the field current for a constant load torque, *T*_{load} = const, are called the *V*-*curves* of the motor (Fig 18).

When no load torque is applied to the shaft of a synchronous motor (*T*_{load} = 0), then, on neglecting all forms of loss, it may be deemed that the stator current of a synchronous motor is purely reactive (see Fig 18, *P* = 0):

*İ = İ*_{reac} = (-*Ė _{0}+*

*V̇)/j*= (

*V̇ + j*ɷΨ̇

_{0}) /

*j*=

*F*(

*I*

_{f})
