Nature of Magnetism

Two electric charges at rest exert forces on each other according to Coulomb’s law. When the charges are in motion, the forces are different, and it is customary to attribute the differences to magnetic forces that occur between moving charges in addition to the electric forces between them. In this interpretation, the total

force on a charge Q at a certain time and place can be divided into two parts: an electric force that depends only on the value of Q and a magnetic force that depends on the velocity v of the charge as well as on Q. In reality, there is only a single interaction between charges, the electromagnetic interaction. The theory of relativity provides the link be- tween electric and magnetic forces: Just as the mass of an object moving with respect to an observer is greater than when it is at rest, so the electric force between two charges appears altered to an observer when the charges are moving with respect to the observer. Magnetism is not distinct from electricity in the way that, for example, gravitation is.

You Need to Know
Despite the unity of the electromagnetic interaction, it is convenient for many purposes to treat electric and magnetic effects separately.

Magnetic Field

A magnetic field B is present wherever a magnetic force acts on a moving charge. The direction of B at a certain place is that along which a charge can move without experiencing a magnetic force; along any other direction that the charge would be acted on by such a force. The magnitude of B is equal numerically to the force on a charge of 1 C moving at 1 m/s perpendicular to B.

The unit of magnetic field is the tesla (T), where

Magnetism equations 6-23-42 PMThe gauss (G), equal to 10−4 T, is another unit of magnetic field some- times used.

Magnetic Field of a Straight Current

The magnetic field a distance s from a long, straight current I has the magnitudeMagnetism equations 6-24-00 PM

where m is the permeability of the medium in which the magnetic field exists. The permeability of free space m0 has the valueMagnetism equations 6-24-10 PM

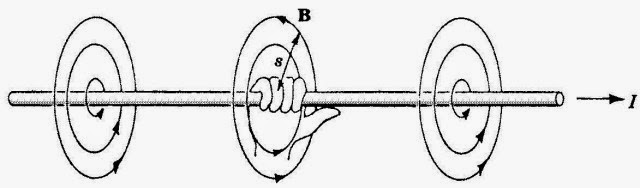

The field lines of the magnetic field around a straight current are in the form of concentric circles around the current. To find the direction of B, place the thumb of the right hand in the direction of the current; the curled fingers of that hand then point in the direction of B (Figure 15-1).Magnetism ]_Page_103_Image_0001

Figure 15-1

Magnetic Field of a Current Loop

The magnetic field at the center of a current loop of radius r has the magnitudeMagnetism equations 6-24-27 PM

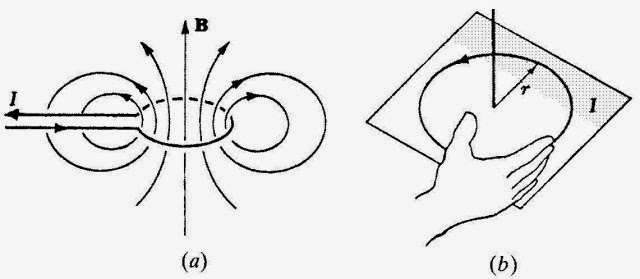

The field lines of B are perpendicular to the plane of the loop, as shown in Figure 15-2(a). To find the direction of B, grasp the loop so the curled fingers of the right hand point in the direction of the current; the thumb of that hand then points in the direction of B [Figure 15-2(b)].

Magnetism ]_Page_104_Image_0001

Figure 15-2

A solenoid is a coil consisting of many loops of wire. If the turns are close together and the solenoid is long compared with its diameter, the magnetic field inside it is uniform and parallel to the axis with magnitudeMagnetism equations 6-24-39 PM

In this formula, N is the number of turns, L is the length of the solenoid, and I is the current. The direction of B is as shown in Figure 15-3.Magnetism ]_Page_104_Image_0002

Figure 15-3

Magnetism ]_Page_105_Image_0001

Figure 15-4

Earth’s Magnetic Field

The earth has a magnetic field that arises from electric currents in its liq- uid iron core. The field is like that which would be produced by a current loop centered a few hundred miles from the earth’s center whose plane is tilted by 11° from the plane of the equator (Figure 15-4). The geomagnetic poles are the points where the magnetic axis passes through the earth’s surface. The magnitude of the earth’s magnetic field varies from place to place; a typical sea-level value is

3 × 10−5 T.

Solved Problem 15.1 In what ways are electric and magnetic fields similar? In what ways are they different?

Solution.

Similarities: Both fields originate in electric charges, and both fields can exert forces on electric charges.

Differences: All electric charges give rise to electric fields, but only a charge in motion relative to an observer gives rise to a magnetic field.

Magnetism ]_Page_106_Image_0001

Figure 15-5

Electric fields exert forces on all charges, but magnetic fields exert forces only on moving charges.

Magnetic Force on a Moving Charge

The magnetic force on a moving charge Q in a magnetic field varies with the relative directions of v and B. When v is parallel to B, F = 0; when v is perpendicular to B, F has its maximum value ofMagnetism equations 6-24-58 PM

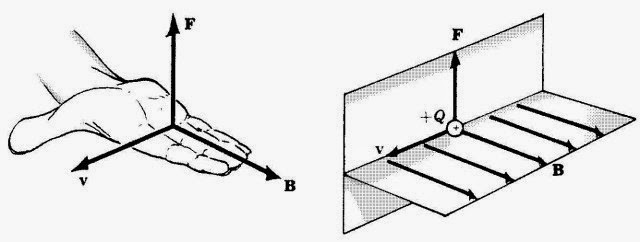

The direction of F in the case of a positive charge is given by the right- hand rule, shown in Figure 15-5; F is in the opposite direction when the charge is negative.

Magnetic Force on a Current

Since a current consists of moving charges, a current-carrying wire will experience no force when parallel to a magnetic field B and maximum force when perpendicular to B. In the latter case, F has the valueMagnetism equations 6-25-06 PM

where I is the current and L is the length of wire in the magnetic field. The direction of the force is as shown in Figure 15-6.

Magnetism ]_Page_107_Image_0001

Figure 15-6

Note!

Owing to the different forces exerted on each of its sides, a current loop in a magnetic field always tends to rotate so that its plane is perpendicular to

B. This effect underlies the operation of all electric motors.

Force Between Two Currents

Two parallel electric currents exert magnetic forces on each other (Fig- ure 15-7). If the currents are in the same direction, the forces are attractive; if the currents are in opposite directions, the forces are repulsive. The force per unit length F/L on each current depends on currents I1 and I2 and their separation s:Magnetism equations 6-25-19 PM

Solved Problem 15.2 A positive charge is moving virtually upward when it enters a magnetic field directed to the north. In what direction is the force on the charge?

Solution. To apply the right-hand rule here, the fingers of the right hand are pointed north and the thumb of that hand is pointed upward. The palm of the hand faces west, which is therefore the direction of the force on the charge.

Ferromagnetism

The magnetic field produced by a current is altered by the presence of a substance of any kind. Usually the change, which may be an increase or a decrease in B, is very small, but in certain cases, there is an increase in B by hundreds or thousands of times. Substances that have the latter effect are called ferromagnetic; iron and iron alloys are familiar examples.

Remember
An electromagnet is a solenoid with a ferromagnetic core to increase its magnetic field.

Ferromagnetism is a consequence of the magnetic properties of the electrons that all atoms contain. An electron behaves in some respects as though it is a spinning charged sphere, and it is therefore magnetically equivalent to a tiny current loop. In most substances, the magnetic fields of the atomic electrons cancel, but in ferromagnetic substances, the cancellation is not complete and each atom has a certain magnetic field of its own. The atomic magnetic fields align themselves in groups called do- mains with an external magnetic field to produce a much stronger total B. When the external field is removed, the atomic magnetic fields may re- main aligned to produce a permanent magnet. The field of a bar magnet has the same form as that of a solenoid because both fields are due to parallel current loops (Figure 15-7).

Magnetic Intensity

A substance that decreases the magnetic field of a current is called dia- magnetic; it has a permeability m that is less than m0. Copper and water

Magnetism ]_Page_109_Image_0001

Figure 15-7

are examples. A substance that increases the magnetic field of a current by a small amount is called paramagnetic; it has a permeability m that is greater than m0. Aluminum is an example. Ferromagnetic substances have permeabilities hundreds or thousands of times greater than m0.

Note!
Diamagnetic substances are repelled by magnets; paramagnetic and ferromagnetic ones are attracted by magnets.

Because different substances have different magnetic properties, it is useful to define a quantity called magnetic intensity H, which is independent of the medium in which a magnetic field is located. The magnetic intensity in a place where the magnetic field is B and the permeability is m is given byMagnetism equations 6-25-40 PM

The unit of H is the ampere per meter. Magnetic intensity is sometimes called magnetizing force or magnetizing field.

The permeability of a ferromagnetic material at a given value of H varies both with H and with the previous degree of magnetization of the material. The latter effect is known as hysteresis.
